Victorian Plumbing Naples Round Offset Outlet Thermostatic Bar Shower Valve

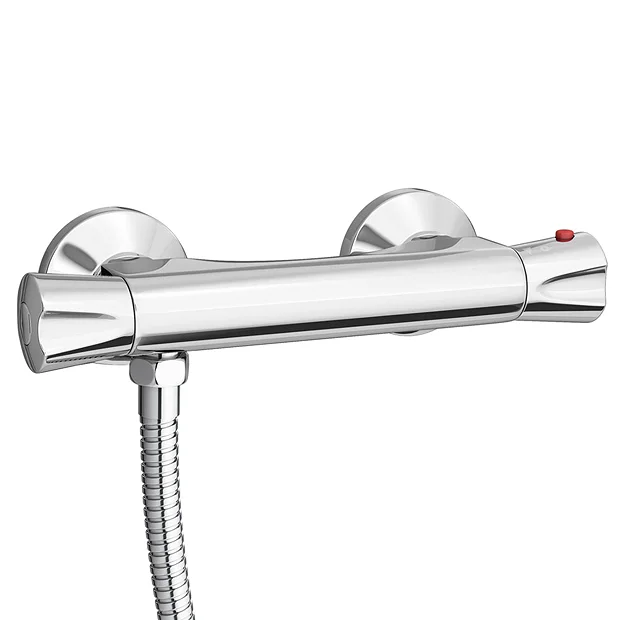

Naples Round Offset Outlet Thermostatic Bar Shower Valve

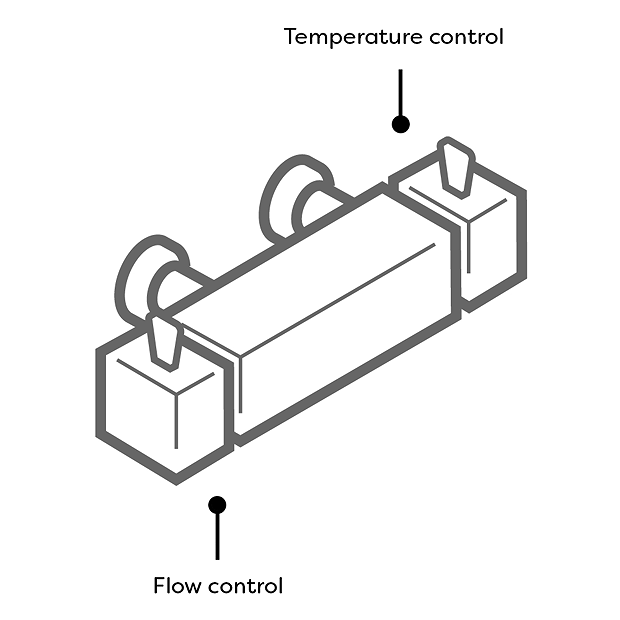

The modern Naples round thermostatic shower bar valve with offset bottom outlet offers thermostatic showering with two easy to operate controls, one operates flow control whilst the other allows temperature selection. Features a pre-set maximum temperature that ensures that showering is safe and convenient. Supplied with decorative shrouds/covers to protect and conceal tile/wall edge, giving the installation a neat finished appearance. Designed to be used with a slider rail kit (not included).

Product Details

• Width: 260mm
• Height: 40mm
• Projection: 69mm
• Type: Round Shower Bar Valve
• Style: Modern
• Fitting: Exposed
• Handle Type: Knob
• Colour/Finish: Polished Chrome
• Material: Solid Brass Internals
• 1 Bottom Offset Outlet
• Wall Mounted
• Thermostatic
• Separate controls for temperature and flow
• Easy installation
• Built in anti-scald device
• Factory pre-set temperature 38°
• Recommended Water Pressure: 0.5 bar to 5 bar
• 150mm between pipe inlet centres
• Outlet: 15 mm (1/2″ BSP)
• Hot water temperature 55 to 85 Degrees
• With gravity fed systems a pump will be required, we recommend a universal or negative head pump

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

All measurements are approximate

Product images for illustration purposes only

Does not include shower hose.

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
