Nuie Binsey Concealed Stop Tap

Nuie Binsey Concealed Stop Tap – BINST10

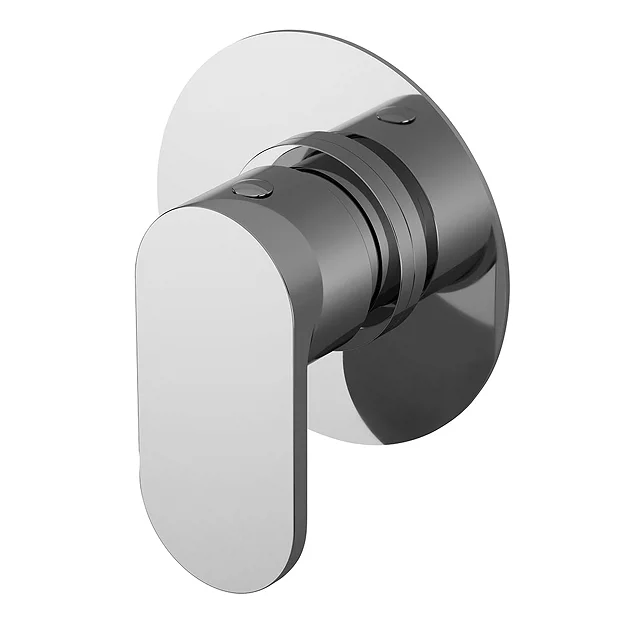

For a sleek and contemporary look, the Binsey concealed stop tap is a great option. It features a round faceplate and matching rounded lever handle and comes beautifully finished in chrome. The concealed stop tap is operated manually, and independently controls the flow of water to a single water outlet. Turn the operating handle 90 degrees to fully open the valve. Reversing this operation will close the valve.

Designed for use with a Nuie Windon thermostatic temperature control.

Product Details

• Brand: Nuie
• Product Code: BINST10
• Height: 100mm
• Width: 100mm
• Depth: 135mm
• Finish: Chrome
• Material: Brass / ABS
• Valve/Cartridge Type: 1/4 Turn Ceramic Disc
• Pipe Size: 15 mm (1/2″ BSP)
• Concealed valve
• For use with 1 Outlet
• Operating Pressure: 0.2 bar

All measurements are approximate

Guarantee: 5 Year

Flow Rates

0.1 Bar – 5.4 l/m
0.5 Bar – 13.4 l/m
1 Bar – 19.2 l/m
2 Bar – 27.5 l/m
3 Bar – 33.3 l/m
