Milan Bathroom Milan Square Wall Mounted Thermostatic Shower Valve With Handset + 300mm Fixed Shower Head

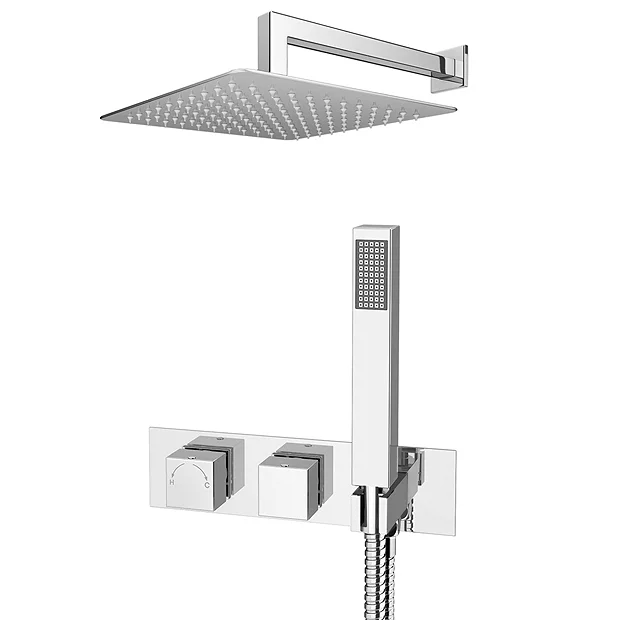

Milan Square Wall Mounted Thermostatic Shower Valve (2 Outlets) with Rectangular Handset and 300 x 300mm Ultra-Thin Fixed Shower Head

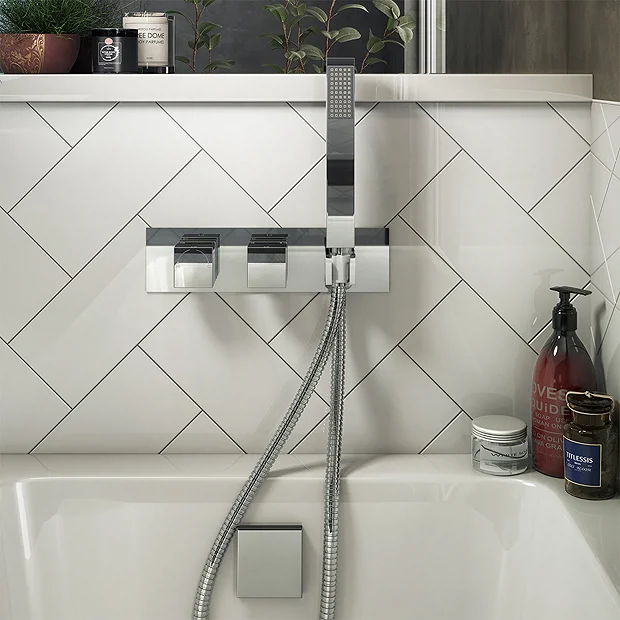

The Milan modern concealed thermostatic control shower valve has been fitted with a handy shower handset. You can also be rest assured the clever thermostatic shower valve will always keep your water at a safe temperature. Features minimalist square handles this modern style shower valve comes with a matching stainless steel ultra thin square shower head with 90 Degree Bend Arm, perfect for installing in a concealed arrangement. Valve diverts between two shower accessories.

Shower Valve Details

• Width: 280mm
• Style: Modern
• Range: Milan
• Type: Twin Concealed Shower Valve with Diverter
• Valve Handles: Square
• Colour/Finish: Chrome Plated
• Material: Brass Internals
• Concealed fitting
• Wall mounted
• Integrated parking bracket
• 2 Outlets
• Min operating pressure: 0.5 bar
• Max operating pressure: 5 bar
• Built-In Diverter
• Includes 1.5m hose and rectangular shower handset
• Shower handset dimensions:
• Height: 205mm
• Width: 29mm
• Should a pump be required we recommend a universal or negative head pump

Shower Head + Arm Details

• Head Size: 300 x 300mm
• Arm Length: 393mm
• Style: Modern
• Colour/Finish: Chrome Effect
• Material: Stainless Steel Head
• Thickness/Profile: 3mm (excluding swivel joint)
• 90-degree Bend Wall Mounted
• Pressure requirement: 0.5 bar minimum
• Inlet Connections: 1/2″ BSP
• Supplied with swivel joint Rub clean nozzles makes this item easy to clean and maintain

Guarantee: 3 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

All measurements are approximate

Pictures shown are for illustration purposes only.

Comprises

(1) Milan Square Wall Mounted Thermostatic Shower Valve (2 Outlets) with Square Handles & Rectangular Handset – Chrome
(1) Square Wall Mounted 90 Degree Bend Shower Arm 393mm – Chrome

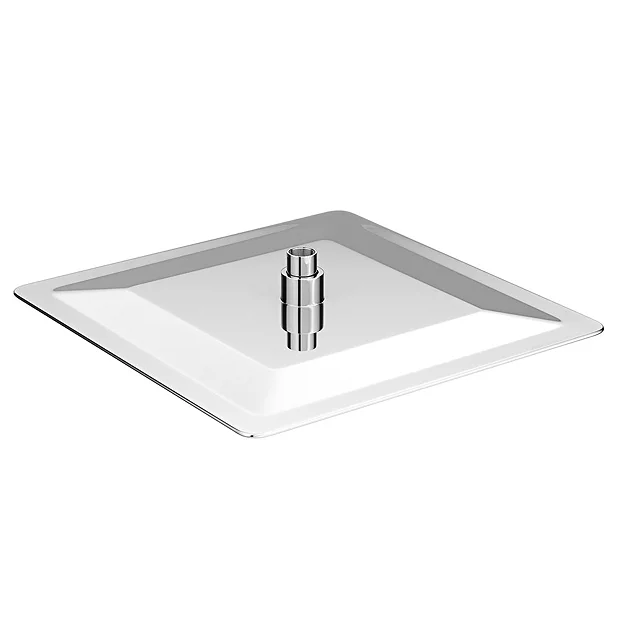

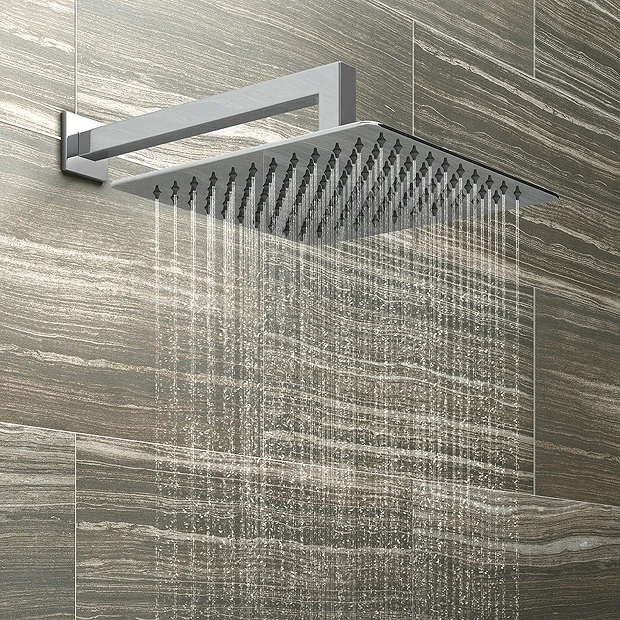

(1) Square Ultra Thin Shower Head (300 x 300mm)

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
