Milan Bathroom Milan Square Modern Shower System With Handset, 4 Body Jets + 200 X 200mm Shower Head

Milan Square Concealed Shower Valve Pack with 3 Outlets (Handset, 4 x Body Jets + Over Head Rainfall Shower Head)

The minimalist Milan 3 way triple function concealed thermostatic shower valve with built-in diverter brings substantial elegance to the modern bathroom. This stylish concealed thermostatic shower valve offers thermostatic showering via two easy-to-operate controls. Features modern square handles, valve has been designed to operate 3 outlets separately.

This Milan square concealed thermostatic valve pack with 3 outlets will compliment any modern bathroom suite, this stylish concealed thermostatic shower valve offers thermostatic showering via two easy-to-operate controls.

Features modern square handles, valve has been designed to operate 3 outlets separately (handset, body jets + overhead rainfall shower head).

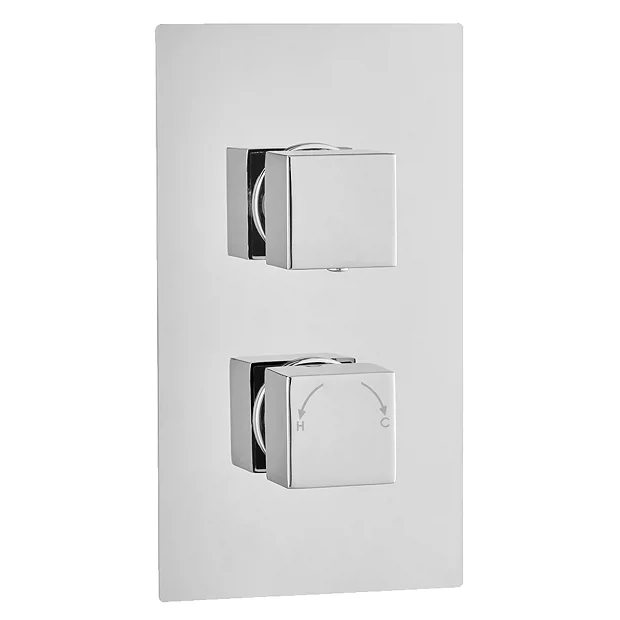

Shower Valve Details

• Height: 215mm
• Width: 120mm
• Depth: 139mm
• High Quality Design
• Colour/Finish: Polished Chrome
• Material: Brass Internals
• Thermostatically controlled
• Valve Handles: Square

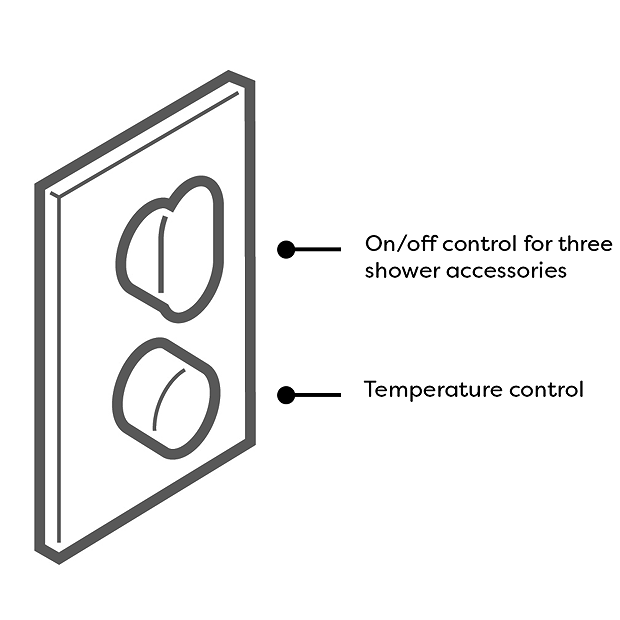

• Top Control: On/Off and diverter combined
• Bottom Control: Thermostat
• Rectangular Faceplate
• Style: Modern
• Built-in Diverter
• Water Pressure: 0.5 bar to 5 bar
• Operates three outlets separately
• Suitable for modern pressurised plumbing systems.
• Hot water temperature 55 to 85 Degrees
• Can be fitted vertically or horizontally
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump.

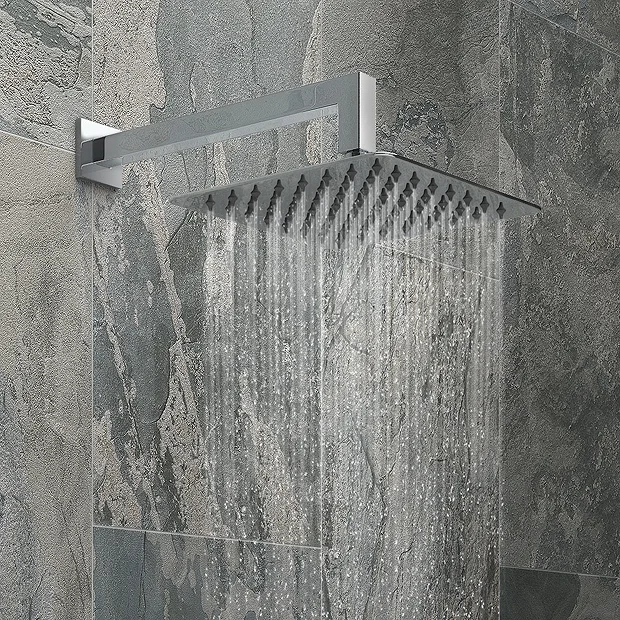

Shower Head and Arm Details

• Style: Modern
• Shape: Square
• Colour/Finish: Polished Chrome
• Material: Stainless Steel
• Shower Head: 200 x 200mm
• Head Thickness: 3mm (excluding swivel joint)
• Shower Arm Length: 393mm
• Wall mounted
• 90-degree Bend
• Pressure requirement 0.5 bar minimum
• Inlet Connections – 1/2″ BSP
• Supplied with swivel joint
• Rub clean nozzles makes this item easy to clean and maintain

Wall Outlet Elbow with Shower Handset Details

• Width: 150mm
• Depth: 66mm
• Contemporary shower styling
• Manufactured To The Highest Standards
• Rust resistant hose
• Highly polished finish
• Rectangular handset
• 1.5m Shower flex –  Brass / Chrome plated
• Rectangular Face-plate – Brass / Chrome plated
• Concealed Outlet Elbow with Parking Bracket – Brass / Chrome plated
• Handset – ABS plastic / Chrome plated
• Suitable for all plumbing systems

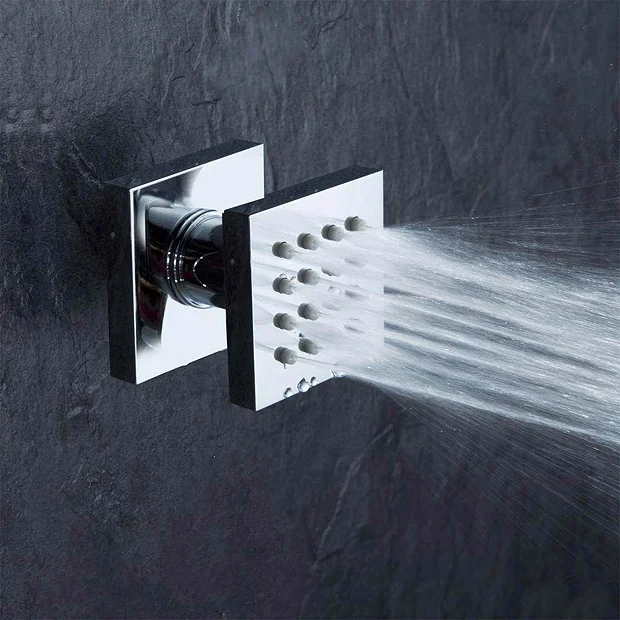

Slim Square Body Jet Details

• Overall Size: D60 x W50 x H50mm approx.
• Shroud: H50 x W50mm
• Brass 1/2 inch BSP thread: 25mm long
• 16 rubber nozzles
• Colour/Finishes: Polished Chrome
• Material: Brass
• Product Type: Slim Square Body Jet
• Supplied with swivel joint
• Silicone nozzles mean that any limescale deposits can simply be rubbed away

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

All measurements are approximate

Images are for illustrative purposes

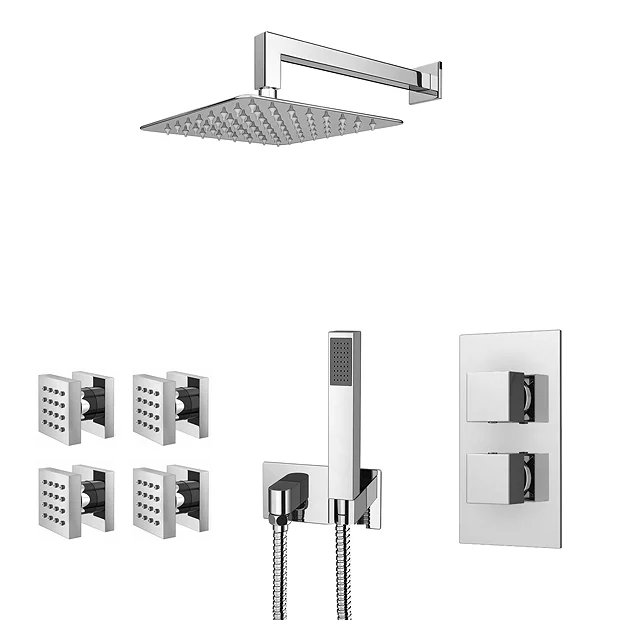

Comprises

(1) Milan Square Thermostatic 3 Way Concealed Shower Valve with Diverter
(1) Milan Square Wall Mounted 90 Degree Bend Shower Arm 393mm – Chrome
(1) Milan Ultra Thin Square Shower Head with Swivel Joint (200 x 200mm)
(1) Milan Concealed Wall Outlet Elbow with Shower Handset
(4) Milan Slim Square Body Jets

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
