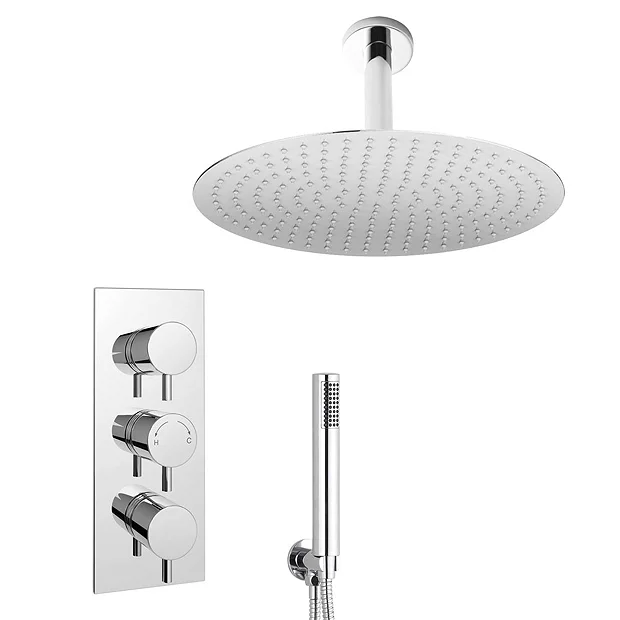

Cruze Bathroom Cruze Shower Package (inc. 400mm Ceiling Mounted Head + Wall Mounted Handset)

Cruze Concealed Shower Package (inc. 400mm Ceiling Mounted Round Rainfall Fixed Shower Head + Wall Mounted Handset)

Enjoy versatile showering every single day with this Cruze Shower Package. Lather up under a luxurious rainfall fixed shower head then rinse using the handheld spray. Since there’s a separate knob for each, you can also use both at the same time. The 3 outlet shower valve plate features sleek round handles to provide a minimalist, modern look. You can mount these horizontally or vertically depending on your set up. The ceiling mounted fixed head and wall mounted pencil handset are easy to clean, even if you’re tackling limescale.

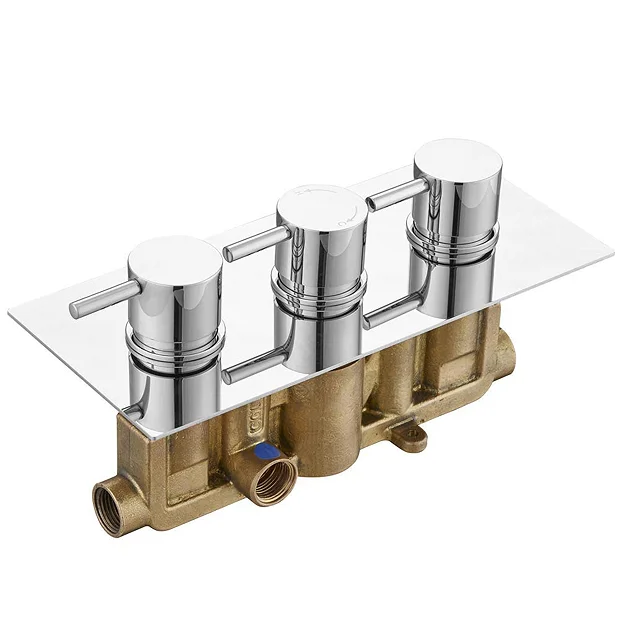

Shower Valve Details

• Width: 120mm

• Depth: 140mm

• Height: 265mm

• High Quality Design

• Finish: Polished Chrome

• Material: Brass Internals

• Thermostatically controlled

• Valve Handles: Round

• Rectangular Faceplate

• Style: Modern

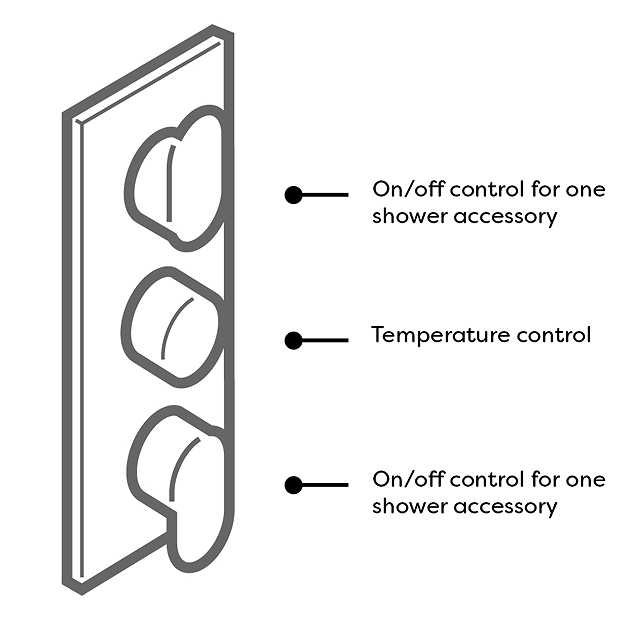

• Operates two points separately or simultaneously

• Water Pressure: 0.5 bar to 5 bar

• Can be fitted vertically or horizontally

• Suitable for modern pressurised plumbing systems.

• Hot water temperature 55 to 85 Degrees
• Should a pump be required we recommend a universal or negative head pump
• Please note: Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.

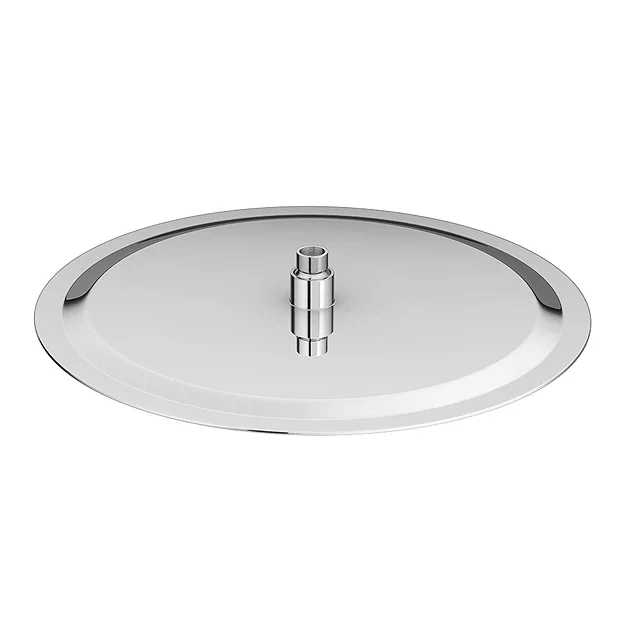

Shower Head Details

• Style: Modern

• Shape: Round

• Colour/Finish: Chrome Effect

• Material: Stainless Steel

• Diameter: 400mm

• Thickness/Profile: 2mm (excluding swivel joint)

• Pressure requirement: 0.5 bar minimum
  Inlet
• Connections: 1/2″ BSP

• Supplied with 360 Degree Swivel Ball Joint

• Rub clean nozzles makes this item easy to clean and maintain

Shower Arm Details

• Finish: Chrome

• Brass Internals

• Ceiling Mounted

• Product Type: Round Shower
• Arm
  Length: 150mm

Round Outlet Elbow with Parking Bracket, Flex + Handset Details

• Depth: 66mm

• Height: 244mm

• Width: 50mm

• Manufactured To The Highest Standards

• Round Handset with Built in Outlet

• Suitable for all plumbing systems

• 1.5m Shower flex – Brass / Chrome plated

• Outlet Elbow with Parking Bracket – Brass / Chrome plated

• Handset – ABS plastic / Chrome plated

• Rust resistant hose

• Highly polished finish
  Pencil handset holder

• Silicone nozzles mean that any lime scale deposits can simply be rubbed away


Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Pictures for illustrative purposes only

All measurements are approximate

Comprises


(1) Cruze Chrome Triple Round Concealed Thermostatic Shower Valve

(1) Cruze Large 400mm Ultra Thin Round Shower Head

(1) Round Chrome Ceiling Arm – 150mm Length

(1) Round Outlet Elbow with Parking Bracket, Flex + Handset

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
