Cruze Bathroom Cruze Round Bottom Outlet Thermostatic Bar Shower Valve

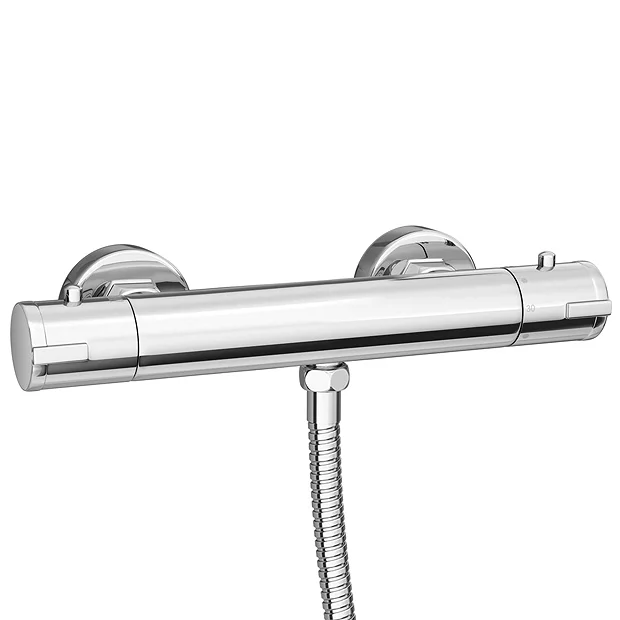

Cruze Round Bottom Outlet Thermostatic Bar Shower Valve

This sleek Thermostatic Bar Shower Valve from Cruze features two simple to use controls – one for flow and one for temperature. Thanks to its clever anti-scald technology, you can rest assured the water will never exceed an optimal 38°C. The shower mixer bar is constructed from solid brass with a chrome finish. Why not tie this modern look together with some understated curved bath taps?

Product Details

• Width: 270mm
• Depth: 79mm
• Height: 40mm
• Style: Modern
• Range: Bar Showers
• Handles: Round
• Colour/Finish: Polished Chrome
• Material: Solid Brass Internals
• Bottom Outlet
• Thermostatically controlled
• Built-in anti-scald device

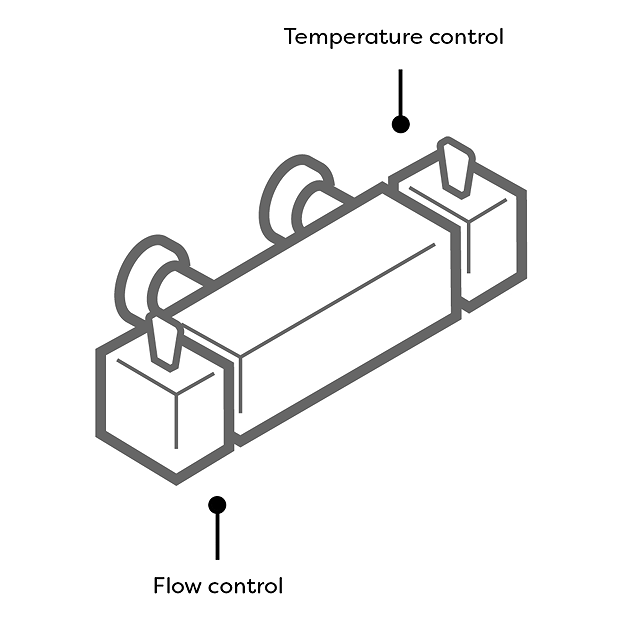

• Separate controls for temperature and flow
• Easy installation
• Factory pre-set temperature 38°
• Recommended Water Pressure: 0.5 bar to 5 bar
• 150mm between pipe inlet centres
• Outlet: 15 mm (1/2″ BSP)
• Hot water temperature 55 to 85 Degrees
• With gravity fed systems a pump will be required, we recommend a universal or negative head pump
• Flow Rates:
• 0.5 bar – 8.2 L/M
• 1 bar – 12.3 L/M
• 2 bar – 17.9 L/M
• 3 bar – 22.1 L/M
• 4 bar – 25.6 L/M
• 5 bar – 28.6 L/M

All measurements are approximate

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Product images for illustration purposes only

Does not include shower hose.

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
