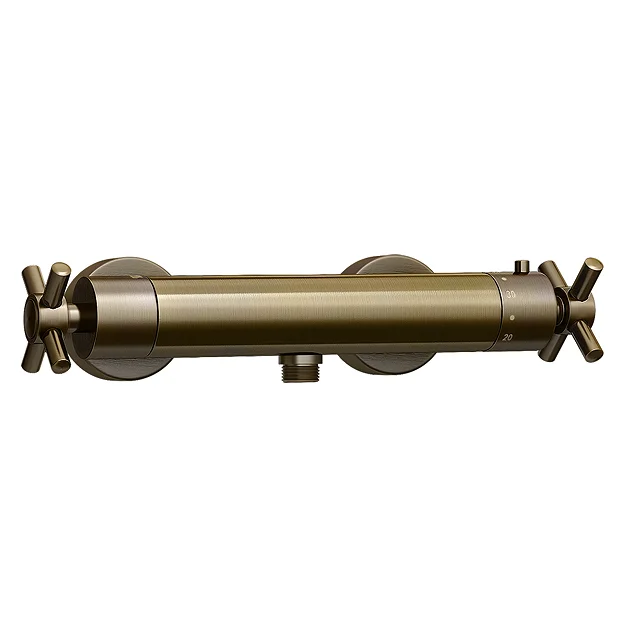

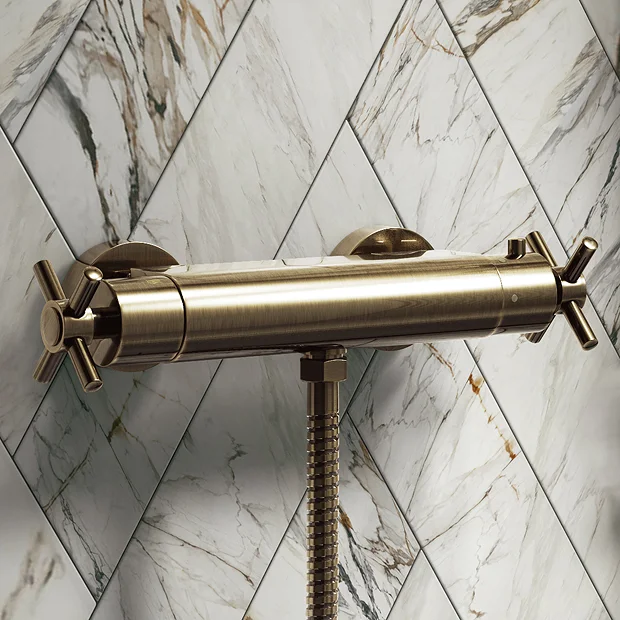

Chatsworth Antique Brass Crosshead Bottom Outlet Thermostatic Bar Shower Valve

Chatsworth Antique Brass Traditional Crosshead Bottom Outlet Thermostatic Bar Shower Valve

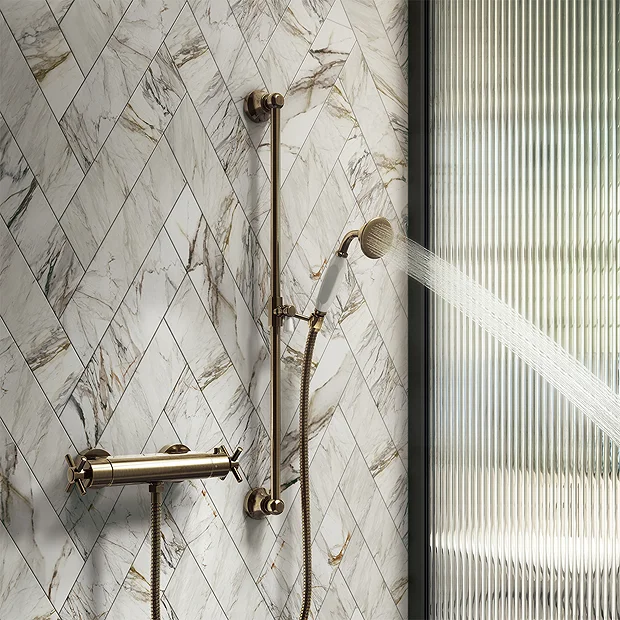

The Chatsworth exposed thermostatic bar valve with bottom outlet is part of our traditional collection of bathroom products. Classic styling with a stunning antique brass finish and constructed from solid brass, the Chatsworth bar valve has two cross-head tap head controls, one controls the flow and the other controls the temperature. Featuring the latest anti-scald technology, the valve is pre-set to a safe and optimal 38°C, this can be easily offset by holding down the safety push and click button on the handle. Combine with one of our matching antique brass slider rail kit (sold separately) for a perfectly harmonious traditional bathroom.

Product Details

• Width: 299mm
• Depth: 79mm
• Height: 65mm
• Colour/Finish: Brushed Antique Brass
• Material: Solid Brass Internals
• Style: Traditional
• Type: Bar Shower Valve
• Handles: Cross-head
• Surface / Wall Mounted
• Bottom Outlet
• Thermostatic shower control valve for comfort and safety
• Built-in anti-scald device

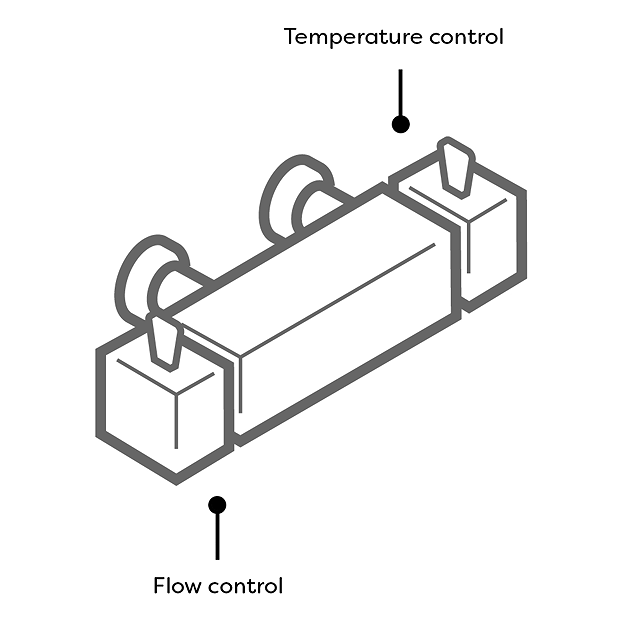

• Separate controls for temperature and flow
• Easy installation
• Factory pre-set temperature 38°
• Durable and dependable
• 150mm between pipe inlet centres
• Water Pressure: 0.5 bar to 5 bar
• Outlet: 15 mm (1/2″ BSP)
• Hot water temperature 55 to 85 Degrees
• Finished in a high quality, corrosion resistant antique brass.
• Classic design – perfect for vintage-inspired bathrooms
• With gravity fed systems a pump will be required, we recommend a universal or negative head pump

Guarantee: 3 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

All measurements are approximate

Product images for illustration purposes only, does not include shower kit.

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
