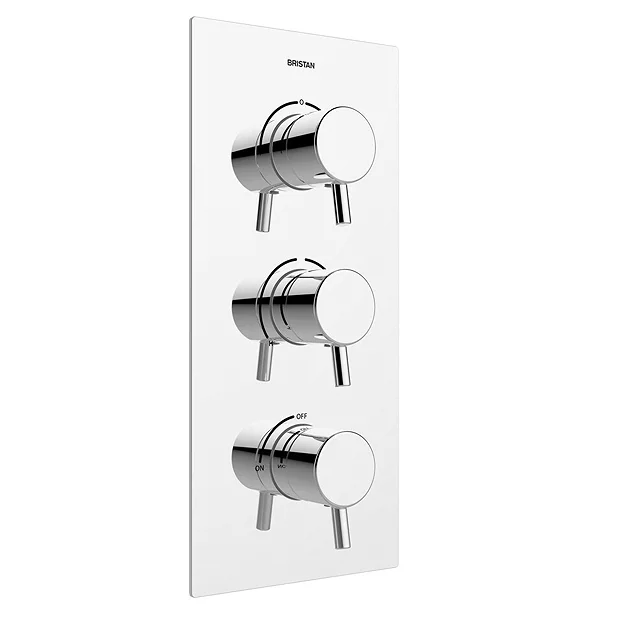

Bristan – Prism Thermostatic Recessed Dual Control Shower Valve With Integral Diverter

Bristan – Prism Thermostatic Recessed Dual Control Shower Valve with Integral Diverter – PM2-SHC3DIV-C

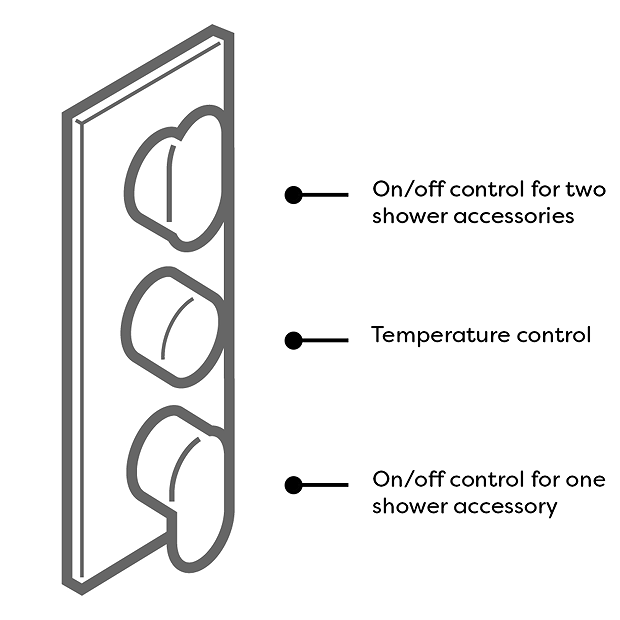

The Prism shower valve has a beautiful and new age modern design. This thermostatic recessed dual control valve incorporates a diverter that diverts the water flow between shower heads, body jets or a bath filler. The Prism Thermostatic Recessed Dual Control Shower Valve is suitable for all plumbing systems, requiring an operating pressure between 0.2 bar and 5.0 bar and comes with dual controls that regulate the temperature and flow separately.

Product Details

• Brand – Bristan
• Finishes – Chrome
• Product Type – Contemporary
• Construction – Body is of brass construction and is designed to conform to BS EN 200
• Valve Type – Ceramic disc valve
• Supply – Suitable for all plumbing conditions, preferably balanced. The inlet hot water temperature must be at least 10% above the required blend temperature.
• Inlet Connections – 15mm Compression connections
• Water Pressure – Working pressures 0.2-5.0 Bar
• Maximum Static Pressure – 10 Bar
• Chrome plated to BS EN 248
• Suitable for cavities between 45-75mm
• Minimum cold water supply temperature is 5°c
• Maximum hot water supply temperature is 80°c
• Flow rate at 0.2 Bar (open outlet without flow regulators) is 8 l/min from diverter, 9 l/min from stopcock. 12l/min from both outlet together
• Fully serviceable from the front

Guarantee – 5 years covering manufacturing faults.

Flow Rates

0.1 Bar – (Outlet 1) 4.9 l/m (Outlet 2) 3.7 l/m (Outlet 3) 3.5 l/m
0.2 Bar – (Outlet 1) 8.3 l/m (Outlet 2) 6.7 l/m (Outlet 3) 6.6 l/m
0.5 Bar – (Outlet 1) 14.5 l/m (Outlet 2) 12.4 l/m (Outlet 3) 12.1 l/m
1.0 Bar – (Outlet 1) 21.2 l/m (Outlet 2) 18.5 l/m (Outlet 3) 18 l/m
