Bristan Joy ThermoSafe Electric Shower White

Bristan Joy ThermoSafe Electric Shower White

**New Features – Warm up mode**

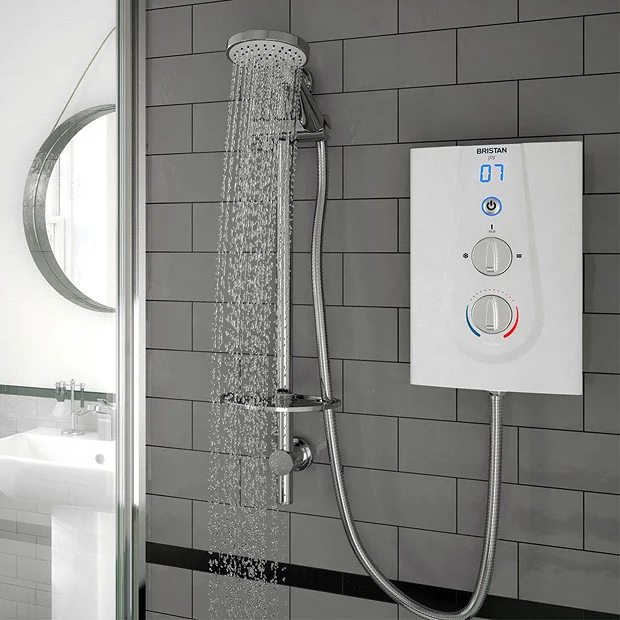

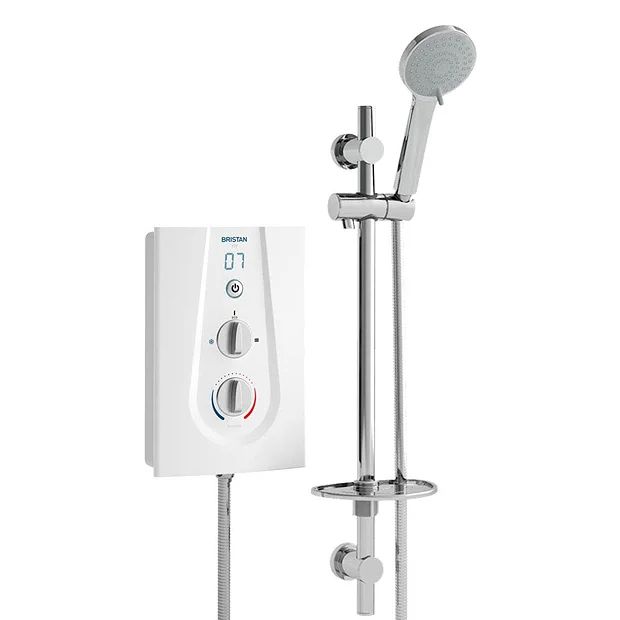

The brand new Joy electric shower from Bristan offers a modern design with a smooth, flat surface which makes it incredibly easy to clean. A push on/off button and separate flow and temperature dials are easy to operate. It also incorporates a ‘phased shutdown’ which clears all of the hot water out of the shower when you turn it off so that the next person who uses it doesn’t get a blast of hot water when they first turn it on. Not only that, but its universal footprint means that it will cover the space left by your old shower, saving you the hassle of re-tiling.

Product Details

• Finish: White
• Product Type: Contemporary
• Construction: Plastic (ABS)
• Supply: Suitable for mains cold feed only
• Inlet Connections: 15mm push fit, 5 directional options
• Outlet Connections: G 1/2″
• Working Pressures: Min 0.7bar, Max 10.0bar

Additional Information

• Instantaneous electric shower drawing water direct from the mains supply; ideal for installations without stored hot water and second bathrooms.
• Warm-up mode for comfortable showering, exclusively with the Joy shower.
• Set your temperature and the indicator light flashes until it is reached and ready for use
• Consistent showering temperature is provided. The temperature stabilising device compensates for changes in the water pressure caused by other household fittings.
• Safety devices include thermal cut out & pressure relief.
• 3 Power settings. (Cold, Warm/Eco, Hot) and a separate temperature control.
• On/Off is operated by Push Button, ensuring temperature setting remains unaffected after each use.
• LED readout displaying temperature settings between 1 and 12
• Safety warning letters in a display panel indicate low pressure and therefore the shower should be turned off until pressure resumes.
• The phased shut down feature ensures all hot water is flushed out of the shower after use prolonging the shower life. This ensures lime scale build up is kept to a minimum.
• Push fit swivel inlet elbow pipe connection, enabling plumbing from 5 different directions.
• This shower is supplied with an adjustable riser kit and 3 mode rub-clean handset.
• The riser has a built in soap tray & integral hose retainer.
• Adjustable riser comes complete with adjustable top/bottom brackets so ideal to cover existing riser holes and tile joints.
• Incorporates a temperature control device (TCD) that activates when the temperature is too high & the water inside the heater gets too hot. The TCD will switch off the power to the heating elements and once the unit cools down to a safe temperature, will come on again.
• ThermoSafe™ Technology: Regulates the output water to minimise high/dangerous output temperatures for a safer showering experience.

WRAS approved Product

Flow Rates (Litres per min)

Power 8.5kW – Flow Rate 4.5
Power 9.5kW – Flow Rate 5.1

Quoted as per European Water Label (EWL) scheme conditions:
Output = 42°C; Input = 15°C; Voltage = 240V
