Bristan Bliss Electric Shower Black

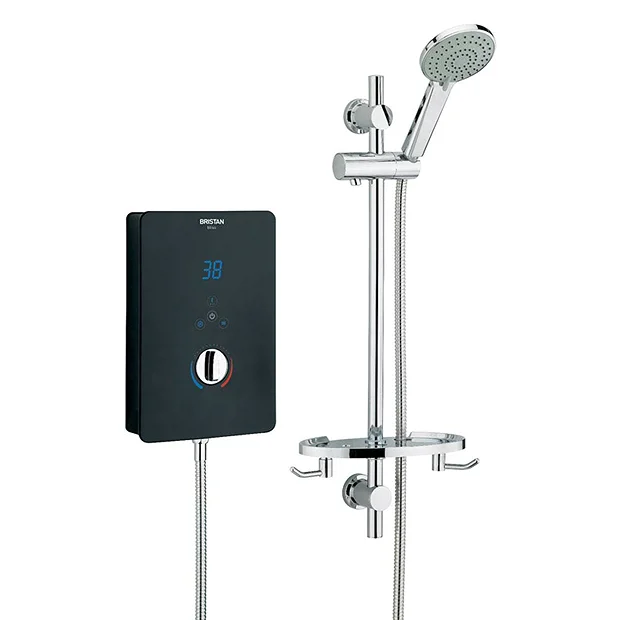

Bristan Bliss 10.5KW Electric Shower Black – BL3105B

Make every shower more enjoyable with this Bristan Bliss Electric Shower. The intuitive touch control panel makes it easy to choose flow and temperature. This particular shower is the 10.5KW option. Five water and electric inlet points along with a universal footprint make it simple to fit and install. A phased shutdown reduces limescale buildup and prolongs shower life.

Product Details

• Finish: Black
• Product Type: Contemporary
• Construction: Plastic (ABS)
• Supply: Suitable for mains cold feed only
• Inlet Connections: 15mm push fit, 5 directional options
• Outlet Connections: 1/2″ BSP male threaded
• Working Pressures: Min 0.7bar, Max 10.0bar
• Energy Rating: A

Additional Information

• Instantaneous electric shower drawing water direct from the mains supply; ideal for installations without stored hot water and second bathrooms.
• Digital display temperature indicator
• Consistent showering temperature is provided. The temperature stabilising device compensates for changes in the water pressure caused by other household fittings.
• Safety devices include thermal cut out & pressure relief.
• 3 Power settings. (Cold, Warm/Eco, Hot) and a separate rotary dial temperature control.
• On/Off is operated by Touch Button, ensuring temperature setting remains unaffected after each use.
• Safety warning letters in a display panel indicate low pressure and therefore the shower should be turned off until pressure resumes.
• The phased shut down feature ensures all hot water is flushed out of the shower after use prolonging the shower life. This ensures lime scale build up is kept to a minimum.
• Push fit swivel inlet elbow pipe connection, enabling plumbing from 5 different directions.
• This shower is supplied with an adjustable riser kit and 3 mode rub-clean handset.
• The riser has a built in soap tray & integral hose retainer.
• Adjustable riser comes complete with adjustable top/bottom brackets so ideal to cover existing riser holes and tile joints.
• Incorporates a temperature control device (TCD) that activates when the temperature is too high & the water inside the heater gets too hot. The TCD will switch off the power to the heating elements and once the unit cools down to a safe temperature, will come on again.

WRAS approved Product

Flow Rates (Litres per min)

Power 8.5kW – Flow Rate 4.5
Power 9.5kW – Flow Rate 5.1
Power 10.5kW – Flow Rate 5.6

Quoted as per European Water Label (EWL) scheme conditions:
Output = 42°C; Input = 15°C; Voltage = 240V
