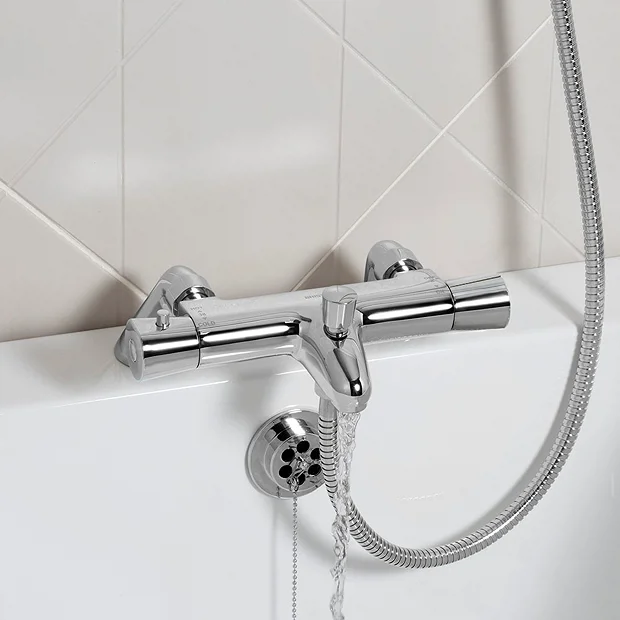

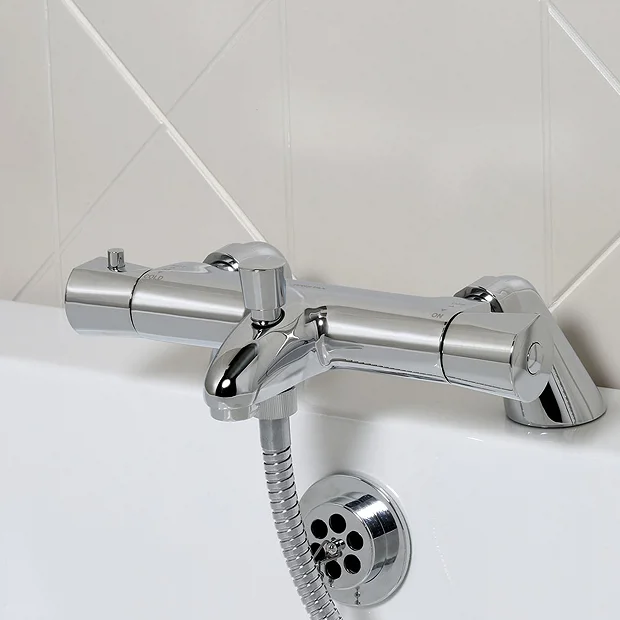

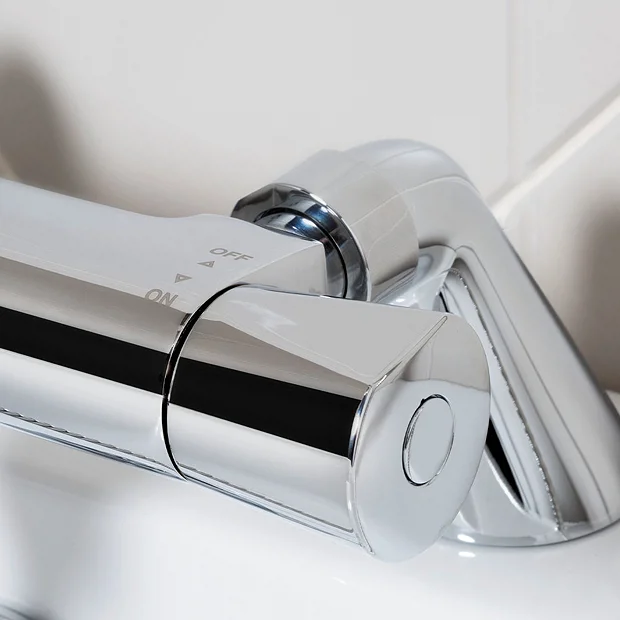

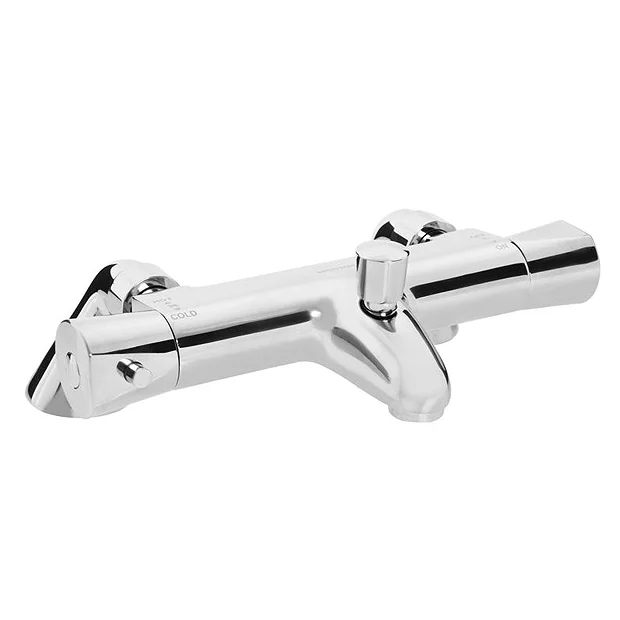

Bristan – Artisan TMV2 Thermostatic Bath Shower Mixer – Chrome

Bristan – Artisan Thermostatic Pillar Bath Shower Mixer – Chrome – AR-THBSM-C

The Bristan Artisan range features dual control and thermostatic cartridge in sleek modern styling. Flow and temperature are controlled separately giving accurate control of both. Comes with TMV2 Approval and 5 year guarantee from Bristan.

Please note shower kit not included.

Product Details

• Thermostatic Bath Shower Mixer
• TMV2 Approved
• Contemporary Style
• Chrome Finish Tap
• Brass constructed tap and designed to comply with BS EN 1111 : 1999 and BS EN 1287 : 1999
• Valve : 1/2 inch standard valve
• Suitable for all plumbing systems preferably balanced
• Thermostatic cartridge
• Inlet Connection : 3/4 inch BSP
• Outlet Connection : G 1/2 inch
• Water pressure : Minimum 0.5 bar – Maximum 5.0 bar, Maximum static pressure – 10.0 bar
• Fitting dimensions : 180mm inlet centres
• Width 280mm x Height 105mm x Depth (Projection) 145mm
• Chrome plated to BS EN 248
• Dual control – Flow and temperature are controlled separately giving accurate control of both
• Complete thermostatic control to bath and shower functions
• Thermostatic cartridge maintains showering temperature to +/- 1ºC by compensating for changes in the incoming water temperature and pressure giving the stable outlet temperature
• Automatic shut off in the event of hot or cold water supply failure, thus reducing the risk of any injury
• Factory set to 38ºC to eliminate the ability to select unsafe temperature; this can be overridden by user

Guarantee: 5 years covering manufacturing faults
