Arezzo Gunmetal Grey Concealed Individual Diverter + Thermostatic Control Valve With Handset + Wall Mounted Shower Head

Arezzo Brushed Gunmetal Grey Concealed Individual Diverter + Thermostatic Control Valve with Handset + 200mm Wall Mounted Shower Head

The Arezzo round concealed individual divertor and thermostatic shower valve features a clean minimalist matt white finish with round tap heads, perfect for creating an eye catching look in your bathroom. Offers thermostatic showering via two easy-to-operate controls for temperature and flow. Diverter switches easily between the overhead rainfall effect and the handset.

Supplied with a matching 200mm round fixed shower head with swivel joint and a round outlet elbow with parking bracket, flex & pencil handset. The solid brass valve body comes with easy to clean contemporary round backplates.

Shower Valve Details

• Diverter Valve: W70 x H70 x D138mm
• Thermostatic Control: W70 x H150 x D138mm
• Backplate: 70mm Diameter
• Style: Modern
• Range: Arezzo
• Valve Handles: Round
• Colour/Finish: Brushed Gunmetal Grey
• Material: Brass Internals
• Concealed fitting
• Round backplates
• For use with 2 Outlets
• Min operating pressure: 0.5 bar
• Max operating pressure: 5 bar
• Hot Water Supply Temperature 55-85°C
• Cold Water Supply Temperature 4-29°C
• Suitable for modern pressurised plumbing systems.
• Pack includes individual thermostatic control with a individual diverter valve for switching water flow between 2 outlets.
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump.

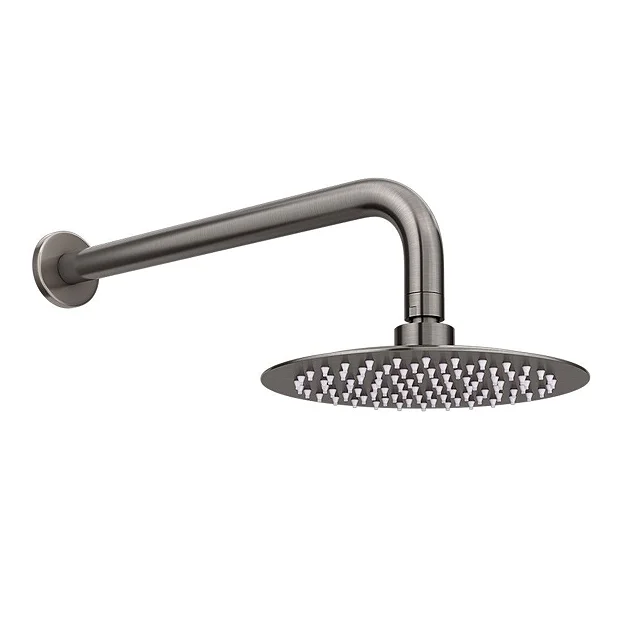

Shower Head + Arm Details

• Shower Head Dimensions: 200mm Diameter
• Shower Arm Length: 345mm (Approx.)
• Style: Modern
• Colour/Finish: Brushed Gunmetal Grey
• Material: Stainless Steel
• Rainfall Effect
• Ultra-Thin Shower Head
• Inlet Connections: 1/2″ BSP
• Pressure requirement 0.5 bar minimum
• Supplied with swivel joint and wall mounted round arm.
• Rub clean nozzles makes this item easy to clean and maintain
• Fixings not included
• Installation of the arm requires rear access behind the wall.

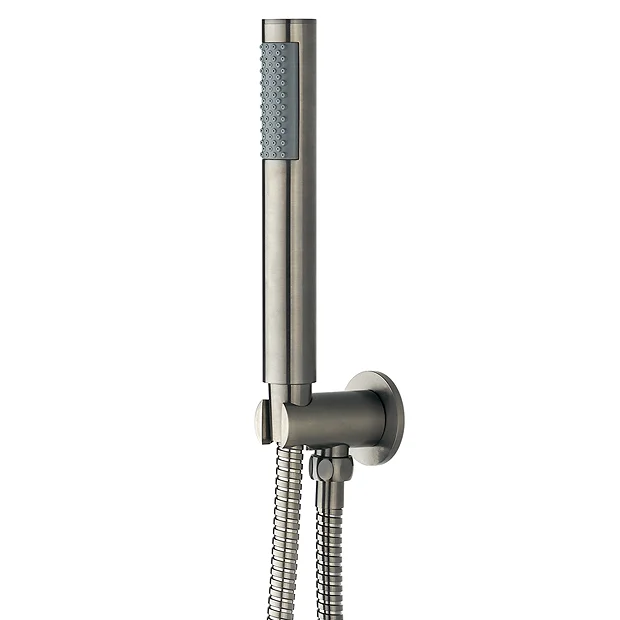

Shower Handset Details

• Depth: 70mm
• Height: 233mm
• Width: 50mm
• Handset Diameter: 185mm
• Handset Height: 28mm
• Colour/Finish: Brushed Gunmetal Grey
• Shape: Round
• Manufactured To The Highest Standards
• Round Handset with Built in Outlet
• Suitable for all plumbing systems
• Manufactured in solid brass
• Eye-catching, brushed gunmetal grey finish
• Outlet elbow covers unsightly fittings
• Matching 1.5m Shower Hose
• Quality finish
• Pencil handset holder
• Connections: 15 mm (1/2″ BSP)
• Perfect for creating a clean minimalist look.
• Installation requires rear access behind the wall.

For further information refer to products installation instructions

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

All measurements are approximate

Images are for illustrative purposes only

Comprises

(1) Arezzo Brushed Gunmetal Grey Concealed Individual Diverter + Thermostatic Control Shower Valve (for 2 Outlets)
(1) Brushed Gunmetal Grey Ultra Thin Round Head – 200mm
(1) Brushed Gunmetal Grey Round Wall Mounted Shower Arm – 345mm
(1) Arezzo Round Brushed Gunmetal Grey Outlet Elbow with Parking Bracket, Flex + Handset

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
