Arezzo Brushed Brass Round Modern Triple Concealed Shower Valve

Arezzo Brushed Brass Round Modern Triple Concealed Shower Valve

The Arezzo Concealed Thermostatic Shower Valve features a striking round design with a luxury brushed brass finish. This ‘triple’ shower valve is perfect for installing in a concealed arrangement, linked to two outlets.

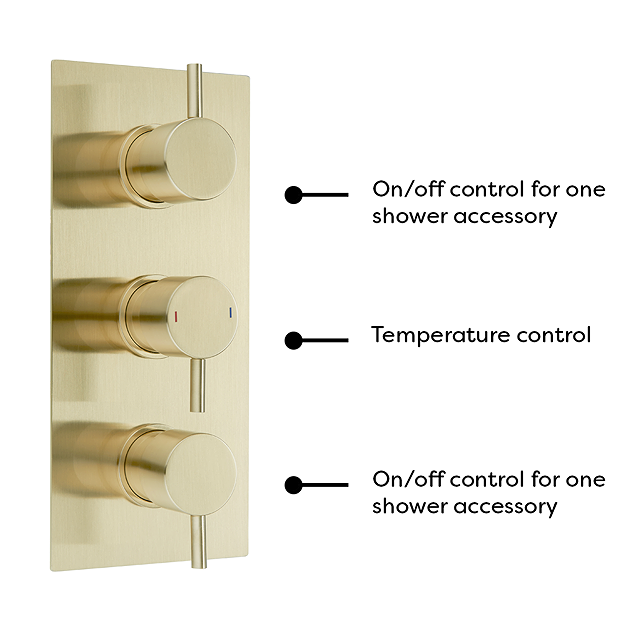

Offers thermostatic showering via three easy-to-operate controls. Separate controls for temperature and flow. Operates two outlets separately or simultaneously e.g. Fixed head / Slide rail kit, Fixed head / Body jets or Slide rail kit / Body jets.

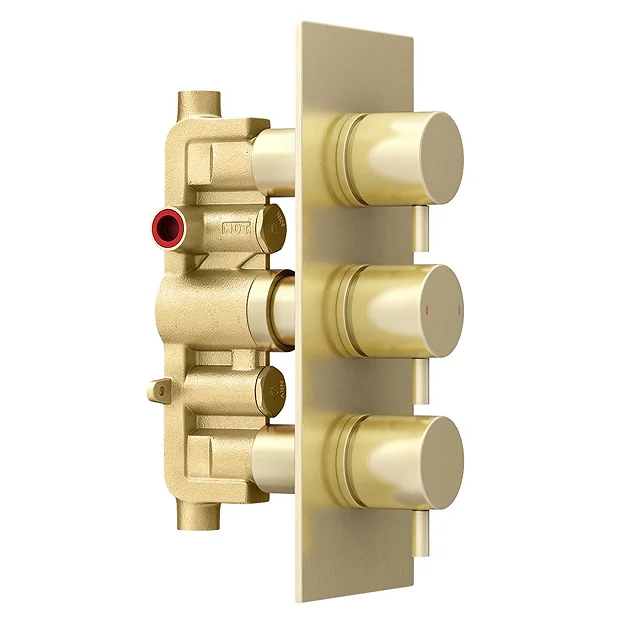

The solid brass valve body comes with a easy to clean contemporary square face plate.

• Width: 120mm
• Depth: 140mm
• Height: 265mm
• Style: Modern
• Colour/Finish: Brushed Brass
• Valve Handles: Round
• Solid Brass Internals
• Thermostatically controlled
• Thermostatic Cartridge
• Rectangular Faceplate
• Outlets: 2
• Operates two points separately or simultaneously
• Water Pressure: 0.5 bar to 5 bar
• Can be fitted vertically or horizontally
• Suitable for modern pressurised plumbing systems.
• Automatic shut off in the event of hot or cold water supply failure.
• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump.
• Flow Rates:
• 0.5 bar – 9.6 L/M
• 1 bar – 14.1 L/M
• 2 bar – 20.5 L/M
• 3 bar – 24.8 L/M
• 4 bar – 28.3 L/M
• 5 bar – 32 L/M

Images shown are for illustration purposes only.

All measurements are approximate

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Comprises

(1) Brushed Brass Triple Round Handles Concealed Shower Valve

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
