AQUAS Sh AQUAS AquaMax Flex Manual Eco 9.5KW Matt Black Electric Shower

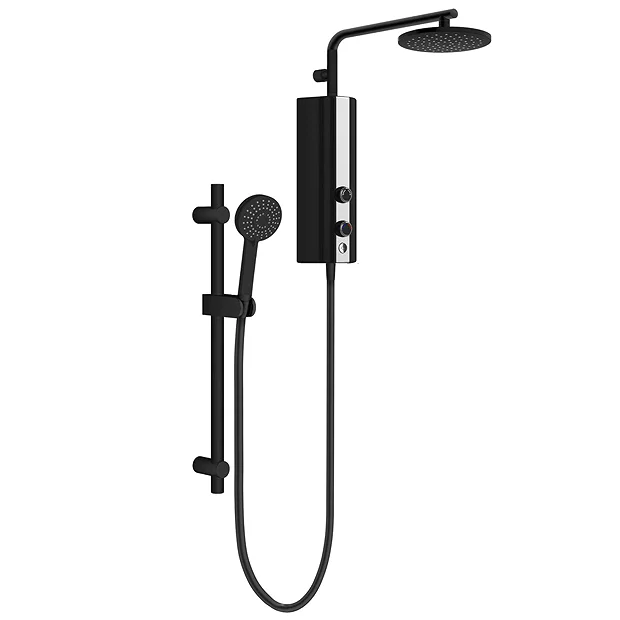

AQUAS AquaMax Flex Manual Eco 9.5KW Matt Black Electric Shower

Elegant and easy to control, the AQUAS AquaMax Eco Shower makes a smart addition to your bathroom. Its two way ceramic diverter allows you to switch easily between the wide overhead flow and the extra long reach hose for maximum versatility. This 9.5kw electric shower even has a dedicated eco function to use less energy during the warmer months – fantastic if you’re consumption conscious. A fibre reinforced tank helps control limescale build up for a longer lifespan. Not quite the right design for your space? You’ll find a perfect match in the range of future ready AQUAS showers.

Product Details

• Range: AQUAMAX
• Name: Top Manual FLEX SMART
• Colour: Black / Chrome
• Handshower:
• Handshower 100mm diameter
• Overhead shower: 200mm
• Slidebar:
• Rail length 600mm with front load slider
• Distance between rail brackets adjustable
• Smooth black hose 1,5m 1/2″ x  1/2″ twistfree non conductive
• Shower arm 400mm with free fixation
• Power Rating: 9.5kw
• Eco function
• Minimum Flow required: 1.0 Bar
• Temperature control:
• Electricity leakage safety
• High pressure protection
• Temperature and flow stabilizer
• Advantages:
• Fiber reinforced  Tank – less limescale, extended life, energy efficient, burst resistant
• Controls:
• Start/Stop button
• Easy Grip – temperature control
• Two-way ceramic divertor to switch between Overhead and Handshower
• Installation:
• Electrical connection
• Water entry points right – top, bottom, back
• All indulge and AQUAMAX models have a water connection that is suitable for a “right” only water supply connection.
• The water connection pipe is not reversible.
• Use standard UK plumbing connections – compression – Push fit.
• Cable entry points left hand side – top, bottom, back : right hand side – top, bottom, back
• Outlet connection 1/2″ compression and pushfit 1/2″
• Power Input:
• A Power Input of 240 V and 40 amp circuit breaker is required for max output ( 9.5 KW ) anything less and the heater will not operate at max efficiency
• A Min Dynamic flow pressure of 100 K /Pa ( 15 ib / Sq In ) – 1.0 BAR  is required
• A Max Static  pressure of 500 K /Pa ( 75 ib / Sq In ) – 5.0 BAR  should not be exceeded

Approvals: BEAB, CE; ROHS

Frequently Asked Questions

https://aquasshower.co.uk/en/customer-care/question-and-answers

Additional images are for illustration purposes only

Warranty: 2 years

Gravity Fed Systems:
This AQUAS shower needs a minimum 1.0 bar of static water pressure feeding the shower, if the shower is being fitted to a gravity fed water tank from the loft (which we do not recommend) it needs to be fitted with a negative or universal head shower pump, this AQUAS shower is meant to have its own independent water feed from the mains.
